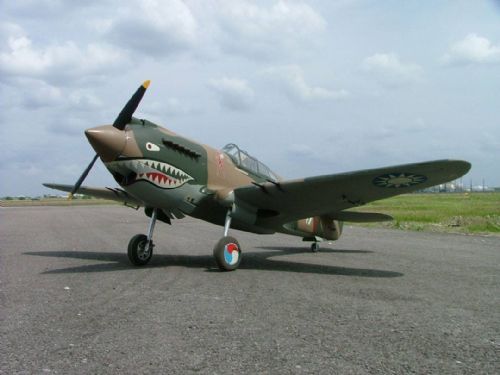

P40 Warhawk Parts Set by Jerry Bates

Available in 3 Scales

Jerry Bates plan for the Curtiss P-40B Tomahawk

Scale: 1/5.5 Wingspan: 82” Length: 63” Weight: 18 – 24 lbs Engine Size: 35cc +

Scale - 1/4.6 W/S - 97 3/8"" 65cc ~ 100cc gas Wt. 28~35lbs.

Scale: 1/3.5 Wingspan: 128” Length: 108.5” Weight: 55 lbs
Engine Size: 120cc +

Designed by Jerry Bates, the parts set for the Curtiss P-40 Warhawk is massive, containing all the shaped balsa and plywood parts cut directly from Jerry's own CAD files.

Fuselage sides, formers, bulkheads, wing ribs, shaped Birch ply spars, tailplane ribs, spars, tip shapes, elevator, rudder cores, flap and aileron cores, fin post, plus many smaller items. Builder to add their own strip/covering, the Belair parts sets will save you dozens of hours (days!) of hand cutting, frankly, it wouldn't be worth your effort or time! Builder to supply stripwood and covering.

Plans not included. Order plans and accessories from Jerry Bates or Fighteraces. Landing gear from Sierra.

P40 Warhawk Parts Set by Jerry Bates
